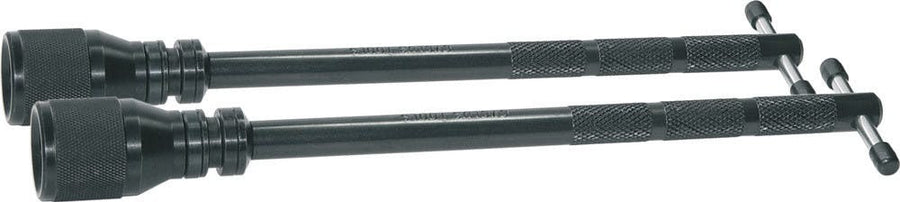

REAR ENDS ALIGNMENT TOOLS
or 4 payments of $29.99 with Afterpay
Use the CYCLUS TOOLS dropout control gauge to check and correct the exact geometric position of the dropouts of the frame.
¦ To use the caliber tool, remove the wheel from the frame (the fork) and clamp both gauges in the axle mount.
¦ Note the different diameters and installation widths here. (Front wheel: axle diameter 9 mm, installation width 100 mm; rear wheel: axle diameter 10 mm, installation width 130/135 mm).
¦ To do this, move the sleeves on the tool accordingly to ensure a good fit.
¦ If the dropouts are positioned correctly, the face planes of the gauges will be parallel to each other – if the two sides of the tool don´t align, the dropouts must be re-aligned accordingly
Part Number: 720011
Barcode: 8590831240321
Product Code: CYC 720011
