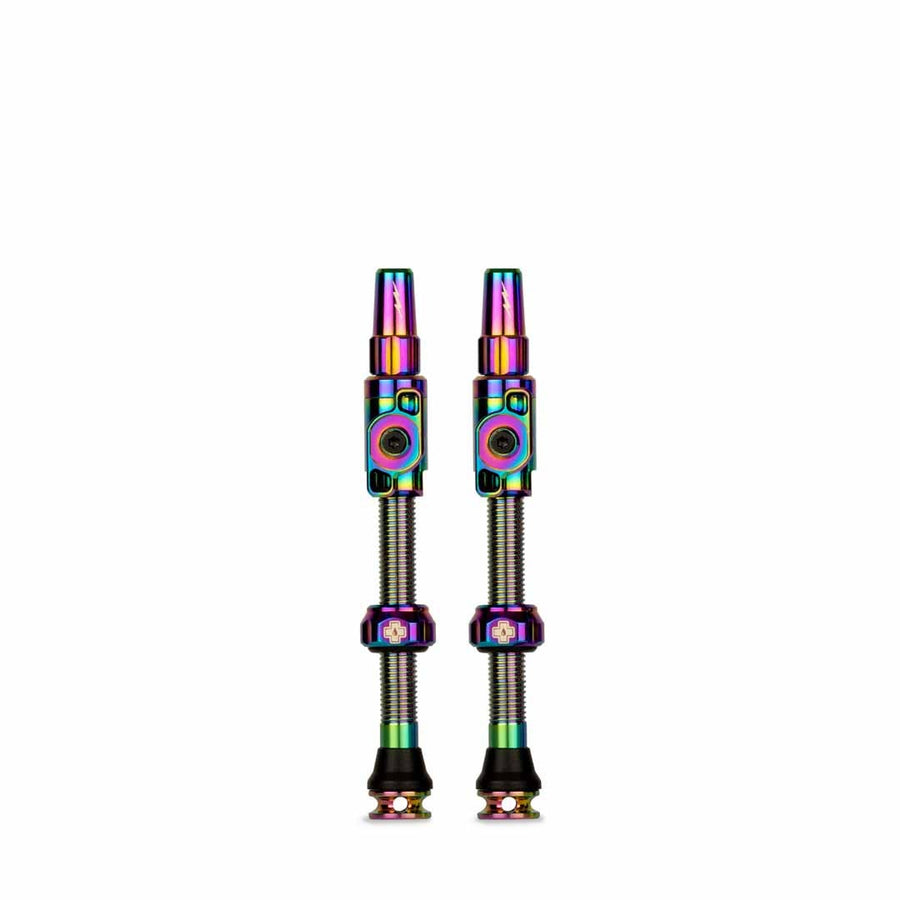

Muc-Off Big Bore Lite Tubeless Valve Large (45mm) Iridescent

How to Use

1. First, remove the ball valve body, cap, locking ring & O-ring from the valve stem.
2. Choose the correct rubber base for your rim type. Rims with a curved rim section will use the circular rubber base. Rims with a square rim section will use the square rubber base. Slide this down to the bottom of the valve stem. (If your rim has a larger valve hole and the smaller circular fitment is too loose, use the larger circular fitment to plug the hole).
3. Now push the valve stem into the hole in the rim and push it right the way through. Then place the rubber 0-ring onto the valve stem and slide it all the way down until it meets the rim.
4. Screw the locking ring onto the valve stem and tighten down above the o-ring. This sandwiches between the locking ring and the rim.
5. Firmly tighten the ball valve body onto the stem using your fingers. Now use a 4mm hex to hold the stem base in place inside the rim, and with an 8mm spanner, tighten the valve body to the stem with a quarter turn. Be careful not to over-tighten, which could lead to damaging the O-Ring. Rotate the body to ensure the lever is pointing towards you. TIP - Use some thread lock such as our Loc-On (available soon!) for an extra secure seal.
6. Now push firmly down on the valve base inside the rim as you tighten the locking ring. Keep pushing until the locking ring is hand-tight and the rubber O-Ring squashes out slightly. This way you know you've created a good airtight seal. TIP - Don't over-tighten as this can cause leakage.
7. Rotate the lever open and fill with Muc-Off Sealant and inflate to your desired PSI! Remember to close the valve so the arrow on the lever is pointing up before removing your pump. You're now ready to roll. To adjust psi on the fly simply open the valve slightly to release air to your desired pressure.

Part Number:
Barcode: 5037835220216
Product Code: MO21153
