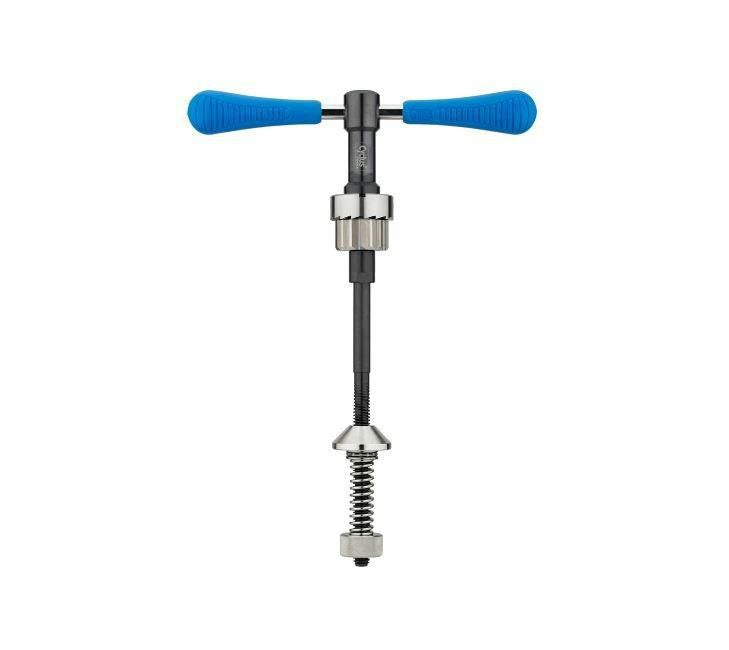

HEADTUBE REAMER & FACER 1

CYCLUS TOOLS head tube Reamer/Facer 1 (30 mm)

Guaranteed straight milling – without cants

Note: Turn the milling cutter evenly in a clockwise direction (also when disassembling the milling cutter).
Always use suitable cutting oil for the material to be machined for the milling process.

Technical Information:
Max. Head Tube Length: 190 mm
Max. Milling Depth: 15 mm
Max. Tube Wall Strength: 4 mm
Max. Internal Diameter: 30 mm (1 ), 34 mm (1 1/8 ), 49.6 mm (1.5 )

Models:
1 (30 mm):
Diameter: 30 mm
Part Number: 720005

1 1/8 (34 mm):
Diameter: 30 mm
Part Number: 720006

1.5 (49.6 mm):
Diameter: 30 mm
Part Number: 720147

Contents:
– 1 x Cyclus Tools double milling head
– 1 x Cyclus Tools T-handle
– 1 x Cyclus Tools turning spindle with thrust bearing
– 1 x Cyclus Tools coil
– 1 x Cyclus Tools conical guide
Part Number: 720005
Barcode: 8590831220019
Product Code: CYC 720005
