DT SwissIn stock

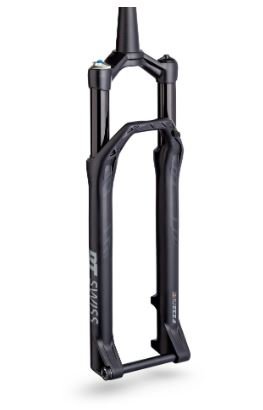

Fork DT F232 one 29 100 15x110 LEVER 51mm*
$2,399.00
or 4 payments of $599.75 with Afterpay
Cross country has progressed – the descents are steeper, the climbs more technical and man-made obstacles such as rock gardens, berms and drops set new requirements for rider and machine. The F 232 ONE is engineered to meet those demands. The topology-optimized lower results in a benchmark stiffness-to-weight ratio. Combined with the XC-optimized LINEAIR spring curve and the three-position INCONTROL damping, the F 232 ONE is ready to chase – whether for a podium or a personal best.
GENERAL
| Product family | F 232 ONE |
| Net weight [g] | 1480.000 |
| Max. system weight MTB | 130 kg |
| Max. system weight eMTB | 120 kg |
| ASTM classification MTB | 3 |
| ASTM classification eMTB | 3 |
| Rim diameter | 622 mm (29" / 700C) |
| Travel | 100 mm |
| Fender interface | Not available |
| Graphic design color | Black grey |
SPRING & DAMPING
| Spring technology | LINEAIR / APT |
| Damping system | INCONTROL O.D.L. |
| Remote | Lever |
DIMENSIONS
| Stanchion diameter | 32 mm |
| Installation length | 507 mm |
| Offset | 51 mm |
| Max. Tire width mm (E) | 73 mm |
| Max. Tire width (inch) | 2.5 " |
| Tire diameter max. (C) | 750 mm |
| Max. diameter (D) at tire width (E) | 720 mm |
| Brake caliper mounting type | Post mount 6" |
| Steerer diameter | Tapered 1.5 - 1 ? " |
| Axle system | 15 mm Thru axle |
| Built-in dimension | 110 mm Boost |
ACCESSORIES
| Accessories fender | Mini Fender |
| Accessories volume spacers | APT Kit (1 Volume spacer) |
| Accessories brake hose clamps | 2 Brake hose clamps |
| Accessories remote lever | None |
| Accessories star nut set | Star nut set black |
| Accessories shock pump | No High Pressure Pump |
| Accessories RWS | RWS Plug In Rod only |
MATERIAL
| Fork slider material | Magnesium |
| Steerer material | Aluminum |
