DT SwissIn stock

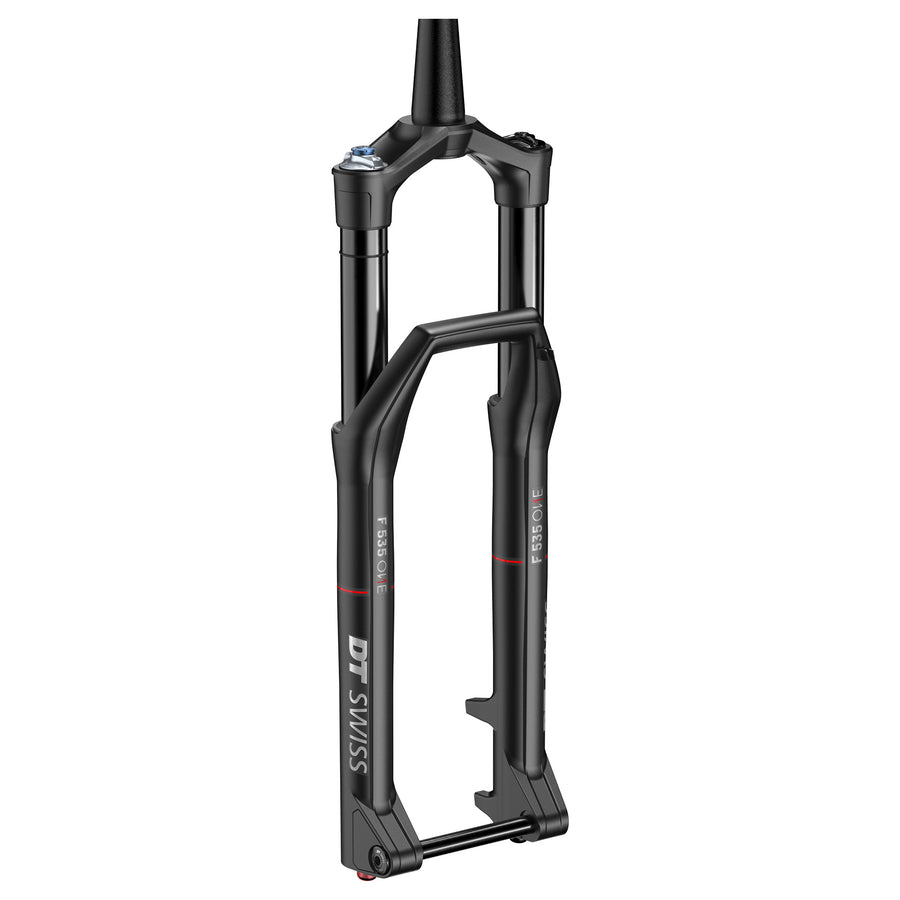

F535 ONE 29 140 ICP CPR AT 44 SSA*
$2,899.00
or 4 payments of $724.75 with Afterpay
F 535 ONE 140 mm 29" 44 mm offset lever
Axle diameter/width & type: 15/110mm TA
Stanchion diameter: 35mm
Fork slider material: Magnesium / Wheelsize: 29 / Color: black (YS 727)
Offset: 44mm / Postmount: 7"
Spring technology: COILPAIR APT
Damping technology: INCONTROL / PLUSHPORT
Crown material/color: Aluminium/black
Steerer type/steerer length/steerer material:
1.125/1.5"/264mm/Aluminium
Decal placement: 10043938 DEC PLACEMENT F535/F535 ONE 44 29
GENERAL
| Product family | F 535 ONE |
| Net weight [g] | 2090.000 |
| Max. system weight MTB | 130 kg |
| Max. system weight eMTB | 150 kg |
| ASTM classification MTB | 4 |
| ASTM classification eMTB | 3 |
| Rim diameter | 622 mm (29" / 700C) |
| Travel | 140 mm |
| Fender interface | w/o XL fender mount adapter |
| Graphic design color | Alu brush gloss with red line |
SPRING & DAMPING
| Spring technology | COILPAIR / LINEAIR / APT |
| Damping system | INCONTROL O.D.L./PLUSHPORT |
| Remote | Lever |
DIMENSIONS
| Stanchion diameter | 35 mm |
| Installation length | 551 mm |
| Offset | 44 mm |
| Max. Tire width mm (E) | 75 mm |
| Max. Tire width (inch) | 2.8 " |
| Tire diameter max. (C) | 760 mm |
| Max. diameter (D) at tire width (E) | 730 mm |
| Brake caliper mounting type | Post mount 7" |
| Steerer diameter | Tapered 1.5 - 1 ? " |
| Axle system | 15 mm Thru axle |
| Built-in dimension | 110 mm Boost |
ACCESSORIES
| Accessories fender | Mini Fender |
| Accessories volume spacers | APT Kit (2 Volume spacers) |
| Accessories brake hose clamps | 2 Brake hose clamps |
| Accessories remote lever | None |
| Accessories star nut set | Star nut set black |
| Accessories shock pump | No High Pressure Pump |
| Accessories RWS | RWS Plug In Lever & Rod |
MATERIAL
| Fork slider material | Magnesium |
| Steerer material | Aluminum |
