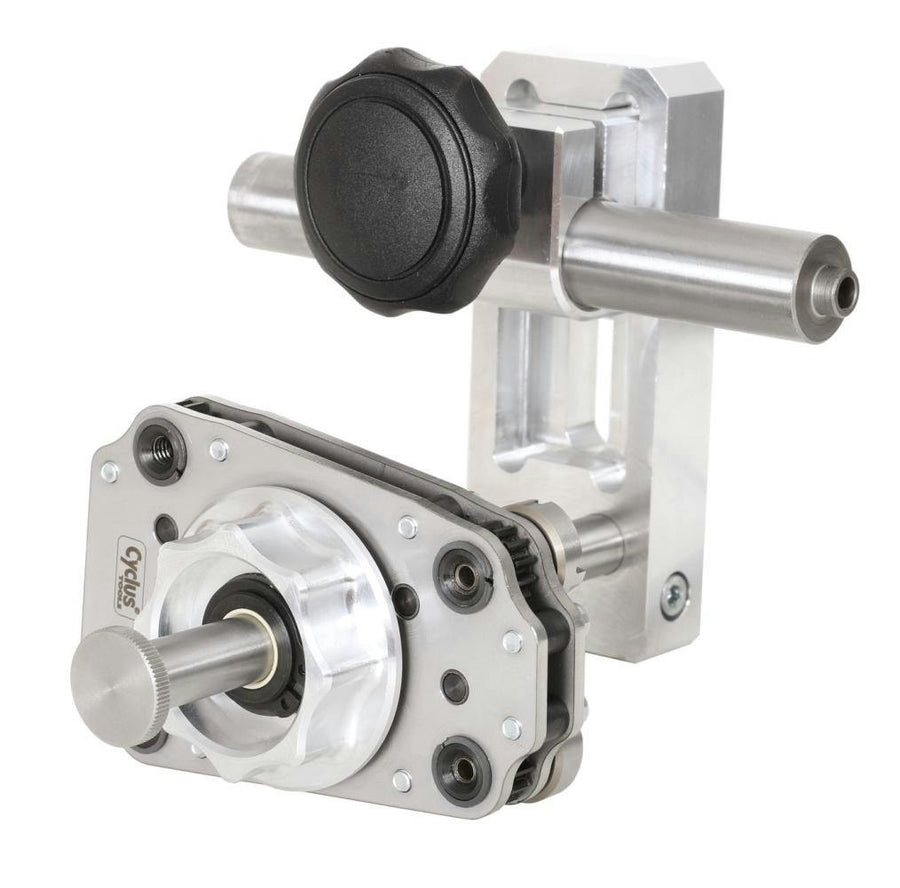

DUAL DISC MOUNT FACING TOOL POST & FLATMOUNT

CYCLUS TOOLS dual disc mount facing tool IS2000, Postmount and Flat Mount

The dual disc mount facing tool can be used universally by simply changing the facer and clamping position. It mills 100% even, at a 90° angle. The exact 90 ° angle and the parallelism of the disc brake mounts are ensured by the fact that the facer is clamped only once and both disc brake mounts are milled simultaneously.

This is the only way to guarantee an absolutely identical milling depth, which is a prerequisite for the correct assembly and proper functioning of the disc brake. Before you clamp the face milling machine, you must check the parallelism of the dropouts, as only then a perfect milling of the disc brake mount is guaranteed.

· The tool is delivered in the standard configuration for 12mm, 15mm and 20 mm thru axle. NB: an adapter is needed to use the face milling tool with a QR axle.

· This tool comes with a facer pair Flat Mount (spare parts): art. CYC 720958

*Flat Mount Front*

for front disc brake / front brake caliper mount

according to flat mount standard

*Flat Mount Rear*

for rear-wheel disc brake / rear brake caliper mount

according to flat mount standard

Post Mount

for disc brake / caliper mount

according to postmount standard

Diameter of the brake disc 140-203 mm

(nominal size: 5-8 inches)

International Standard 2000 (IS2000)

for disc brake / caliper mount

according to IS2000 standard

Diameter of the brake disc 140-203 mm

Optional accessories:

· CYCLUS TOOLS milling cutter pair (Ø 12 mm, height 15 mm) Art. 720237
