CYCLUS HEAD TUBE REAMER IHS SPARE, 44/6.0/45°
or 4 payments of $61.24 with Afterpay

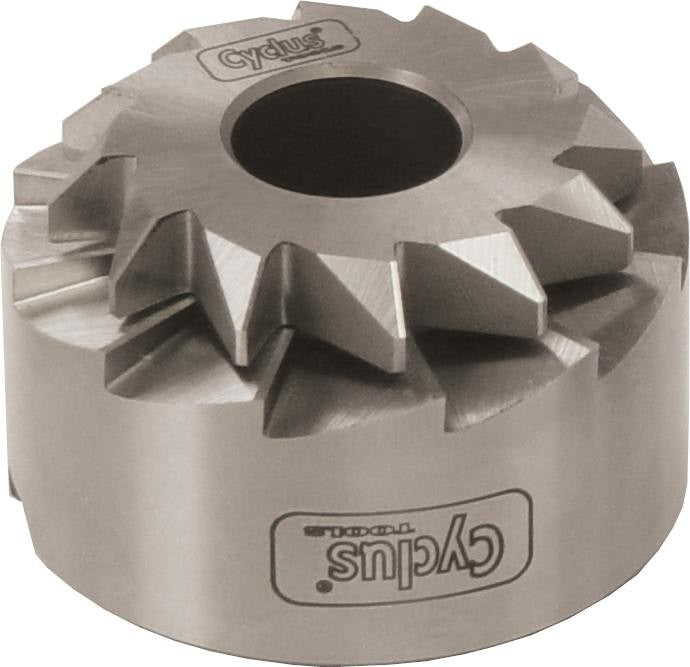

CYCLUS TOOLS head tube reamer (44/6,0/45°), spare cutting head.
With the head tube reamer you can prepare head tubes with an inner diameter of 41.7 mm and a milling depth of 6.0 mm for the installation of an integrated headset. The angle of the bearing shell seats is 45 °. The milling cutter allows you to create planar and coaxial shell seats in the head tube.
The individual milling cutters were named according to the new naming system S.H.I.S.: (Standardized Headset Identification System). consists of the type of headset and the associated inside diameter of the head tube e.g. EC 34:
EC (External Cup), ZS (Zero Stack) and IS (Integrated Standard).
– Diameter: 44 mm
– Milling depth: 6.0 mm
– Milling angle: 45 °
Includes:
– one individual cutter!
Note:
– For a complete tool you also need to order the holder for the head tube cutter (item number: 720211) and the cone guide (item no .: 720943).
– always only turn in clockwise direction.
– use suitable cutting oil when milling.
Part Number: 720914
Barcode: 8590831220422
Product Code: CYC 720914
