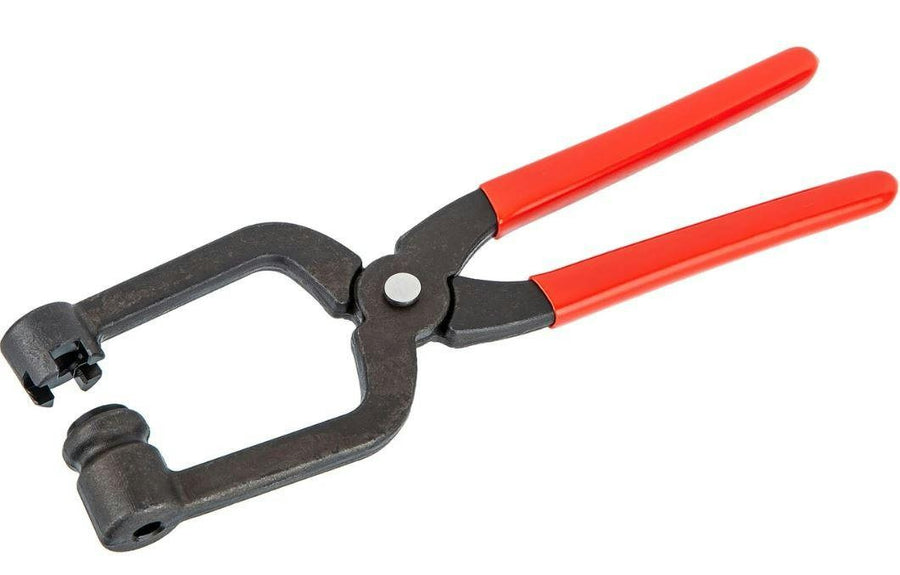

CYCLUS CHAINRING´R CHAIN RING BOLT PLIERS, INCL. B

CYCLUS TOOLS Chainring´r chain ring bolt assembly pliers – including Bit D for Shimano chain rings.

Professional tool for quick and simple exchange of chain rings. The crank can stay assembled on the frame.

On one side there is a guide for hexagon wrench (diameter 7mm), on the other side there is a drive for the different bits, depending on the crank bolt standard you want tork with.

Note: This tool is delivered with bit D for all Shimano chain rings, which has 2 notches of 1.5 mm thickness.

Other Bits (A to E) are available to facilitate changing other pattern of chain ring bolt:

· Bit A (720322) constant 1.0 mm notch, separate part for chain ring bolt assembly pliers (code: 720327). For Campagnolo carbon cranks (Chorus / Record / Super Record).

· Bit B (720323) notch, 2.0 mm, separate part for chain ring bolt assembly pliers (code: 720327). For Miche cranks (Team / Pista / Evo / Young).

· Bit C (720324) hexagon 5 mm, separate part for chain ring bolt assembly pliers (code: 720327). For SRAM/Truvativ cranks (XX / X0/ X9 / X7 / X5 / S1400 / S1000) and FSA (K-Force Light / SL-K / Gossamer / Afterburner).

· Bit D (720325) 2-notch 1.5mm, separate part for chain ring bolt assembly pliers (code: 720327). For Shimano cranks (Dura Ace / Ultegra / 105 / XTR / XT / LX / Deore).

· Bit E (720326) 2-notch 1mm, separate part for chain ring bolt assembly pliers (code: 720327). For Campagnolo square taper, Campagnolo Pista, SRAM X-Four, Shimano Dura Ace Pista cranks.

Article number: 729996 includes the Chainring ‘r bolt assembly pliers, plus the 5 Bits A to E as detailed above
Part Number: 720327
Barcode: 4250968700269
Product Code: CYC 720327
