Take the lead of your next race with our fastest road racing wheels.

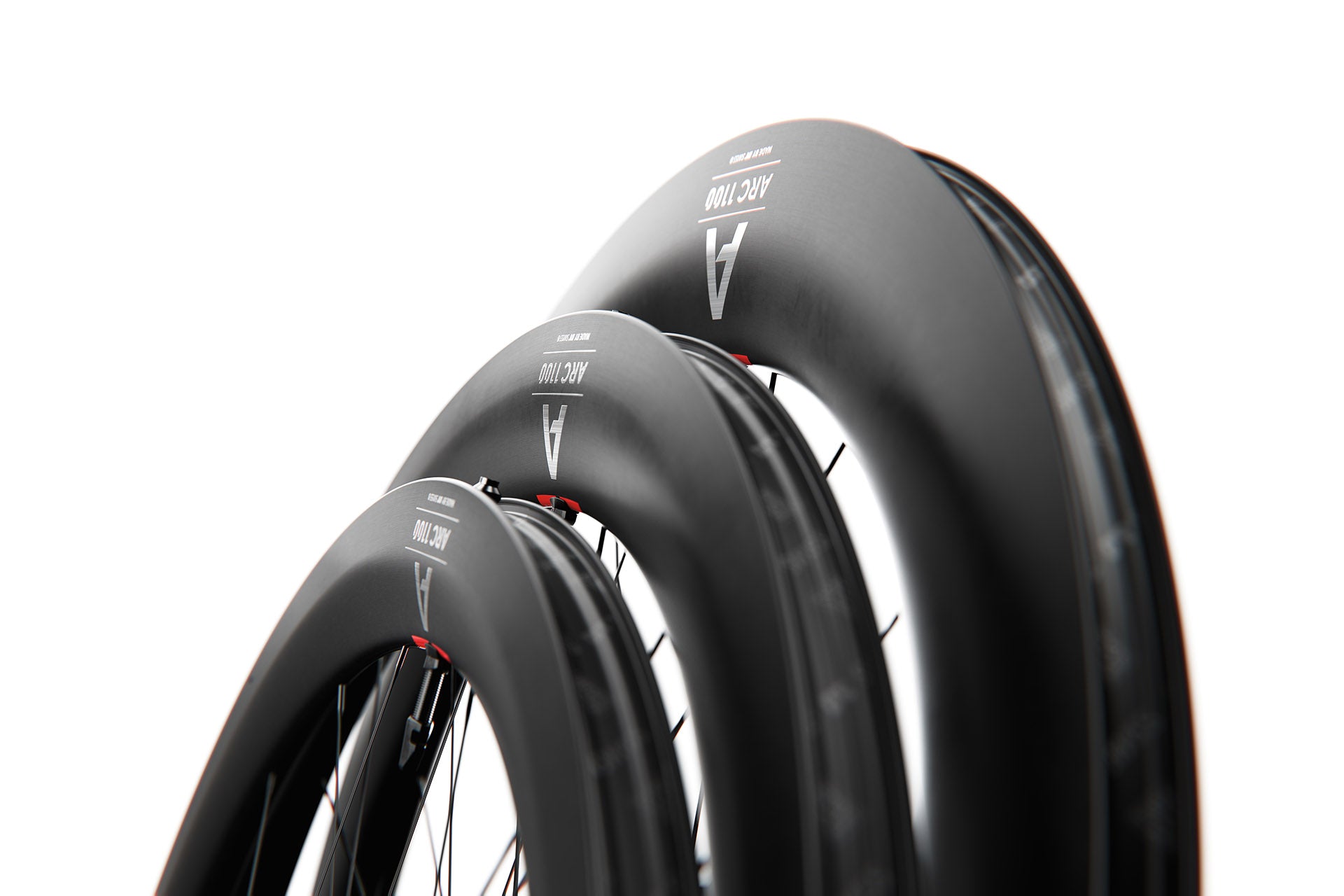

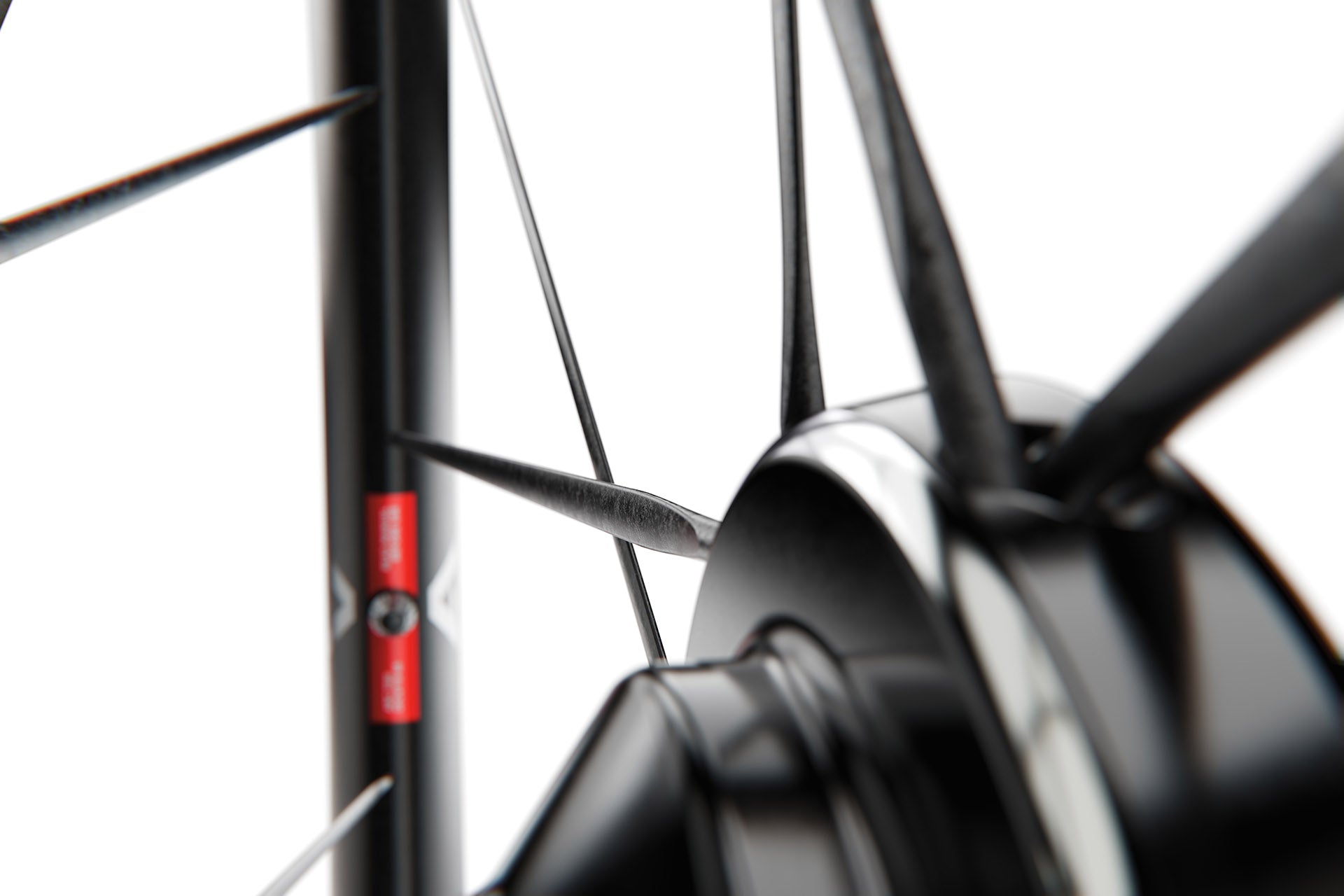

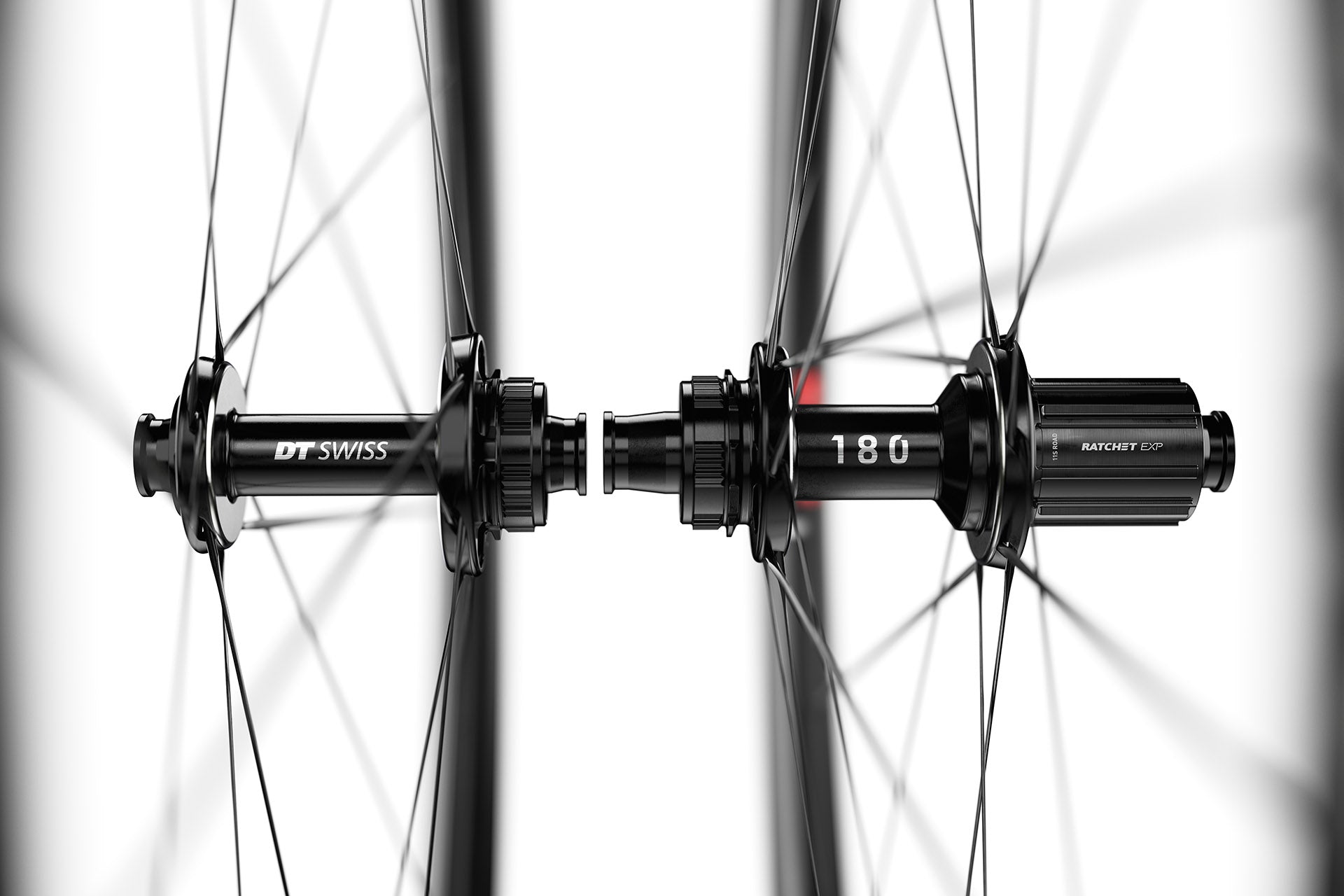

Being a leader is not for the faint of heart. The third generation of ARC reaches a new peak of innovation, with wider inner rim width, now 22 mm, that ideally supports wider tyres providing you with grip and comfort. You will be able to storm ahead with enhanced speed over a long period. Three different rim heights, 55, 65, 85 mm, with a unique v-shape allow for a wider inner width without compromising aerodynamics and weight. The top-of-the-line 180 DICUT hub with Ratchet EXP System and SINC ceramic bearings, as well as DT aerolite II spokes are the final ingredients needed to cross the finish line first. Join our mission to improve, to keep striving, to get ahead. The lead is taken, not given.
| Rim Height |
85 mm |
| Rim Diameter |
622 mm (29" / 700C) |
| Inner Width |
22 mm |
| Tyre Interface |
Hooked / Crotchet tubeless TC |
| Valve Hole |
Presta |
| Brake Interface |
Disc Center Lock |
| Axle System |
12 mm Thru axle |
| Built-in Dimension |
142 mm |
| Cassette Interface |
Shimano ROAD |
| Freehub Body |
Shim. RD. 11SP Light S ASLS11 |
| Freehub System |
Ratchet EXP 36 |
| Included |
Valve guard
SRAM XDR Road freehub body kit
Tubeless tape 25 mm
TL Vent alu black 81-85 mm
Wheel bag |
| ASTM Classification |
1 |
| Recommended system weight max. |
110 kg |
| Recommended for E-Bikes |
No |
| Net Weight (g) |
1207 |
